Models listed below are examples and do not include the manufacturer's entire product line

Heavy Duty Rail Gates

  • FXD Fold-A-Vador® 6,800 lb Capacity
    FXD:

    Standard Features
    Maintenance Minder2® • Header Kit (dock seal) • Four (4) hardened steel rollers with greasable anti-friction bearings Leyman Extreme Shield • Two (2) hydraulic cylinders perform the lifting • Bolt on installation kit • Power close platform Stationary potted marine toggle switch operation • Four (4) L.E.D. lights • Smooth outer rails with reinforced plates Springs assist opening • Dual power unit assembly with battery box • Hose burst valves (non- electrical)

    fxd
  • FDC-CR Fold-A-Vador® Rail Gate: 3,500 lb to 6,500 lb capacities
    FDC-CR:

    Steel Platform Rail Gate
    Floor Heights: 40" Laden to 56" Unladen

    Standard Features
    Maintenance Minder2® • Power pack enclosure houses pump and motor • Hose burst valves (non-electrical) • Power close platform Smooth outer rails with reinforced plates • Springs assist opening • Four (4) L.E.D. lights • Two (2) hydraulic cylinders perform the lifting Four (4) hardened steel rollers with greasable anti-friction bearings • Torsion bars assist opening and closing • Leyman Extreme Shield Stationary potted marine toggle switch operation

    FDC-CR

  • FDC-AL Fold-A-Vador® Rail Gate: 3,500 lb to 6,500 lb capacities
    FDC-AL:

    Aluminum Platform Rail Gate
    Floor Heights: 40" Laden to 56" Unladen

    Standard Features
    Maintenance Minder2® • Power pack enclosure houses pump and motor • Hose burst valves (non-electrical) • Power close platform Smooth outer rails with reinforced plates • Springs assist opening • Four (4) L.E.D. lights • Two (2) hydraulic cylinders perform the lifting Four (4) hardened steel rollers with greasable anti-friction bearings • Torsion bars assist opening and closing • Leyman Extreme Shield Stationary potted marine toggle switch operation

    FDC_AL

    • Tuck Away Gates

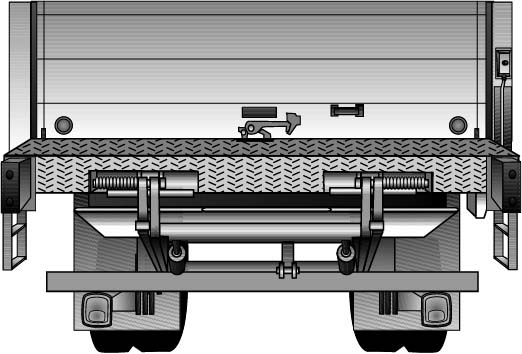

    • LHLP 2,500 Lb & 3,500 Lb Capacities
      LHLP:

      Level Ride Aluminum Tuckunder Platform
      Floor Heights: 46" Laden to 58" Unladen

      Standard Features
      Power down • Potted toggle switch master control • Greased pivots at platform • Pressure compensated fl ow control Bolt on power pack enclosure holds pump and motor • Automatic mechanical tilt • Low P.S.I. due to larger piston area Platform extension for 96”W or 102”W vehicle or threshold mounting tube • Spring assisted opening and closing Two (2) foot operated cart stops • Aluminum bi-fold platform • Leyman Extreme Shield

      LHLP

      LHLP

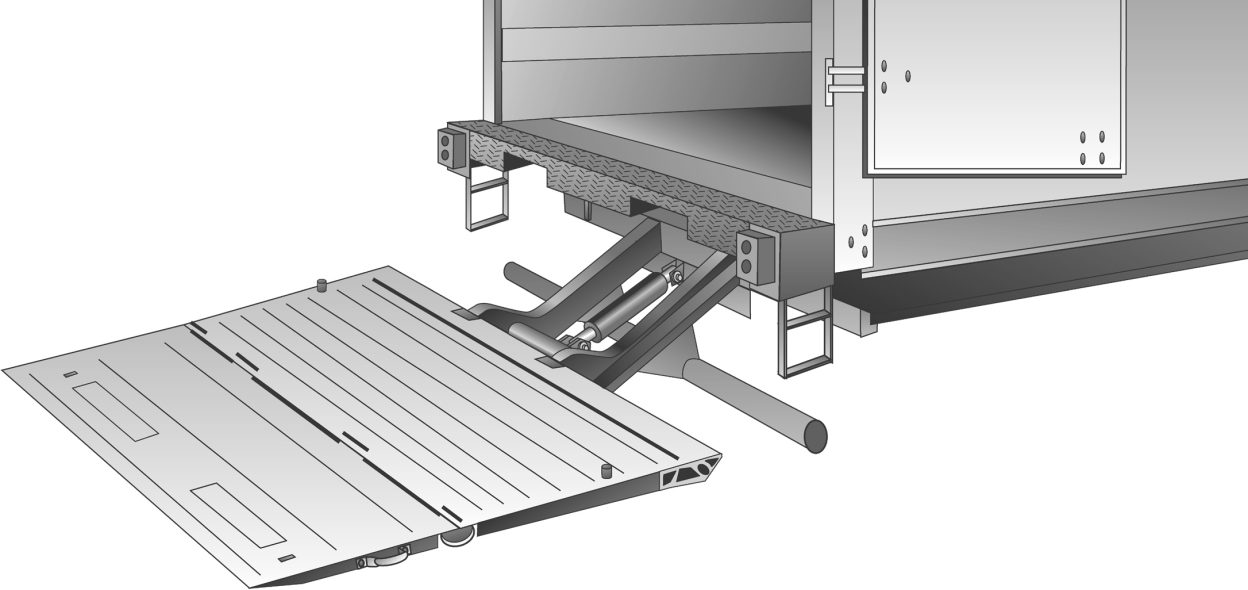

    • LHLP 4,500 Lb & 5,500 Lb Capacities
      LHLP:

      Level Ride Aluminum Tuckunder Platform
      Floor Heights: 46" Laden to 60" Unladen

      Standard Features
      Power down on demand • Maintenance Minder2® • Potted toggle switch master control • Spring assisted opening and closing Greased pivots at platform • Pressure compensated fl ow control • Two (2) foot operated cart stops • Aluminum bi-fold platform Bolt on power pack enclosure holds pump and motor • Low P.S.I. due to larger piston area • Two (2) hydraulic cylinders for lifting Platform extension for 96”W or 102”W vehicle or threshold mounting tube • Leyman Extreme Shield • Automatic mechanical tilt

      LHLP

      LHLP

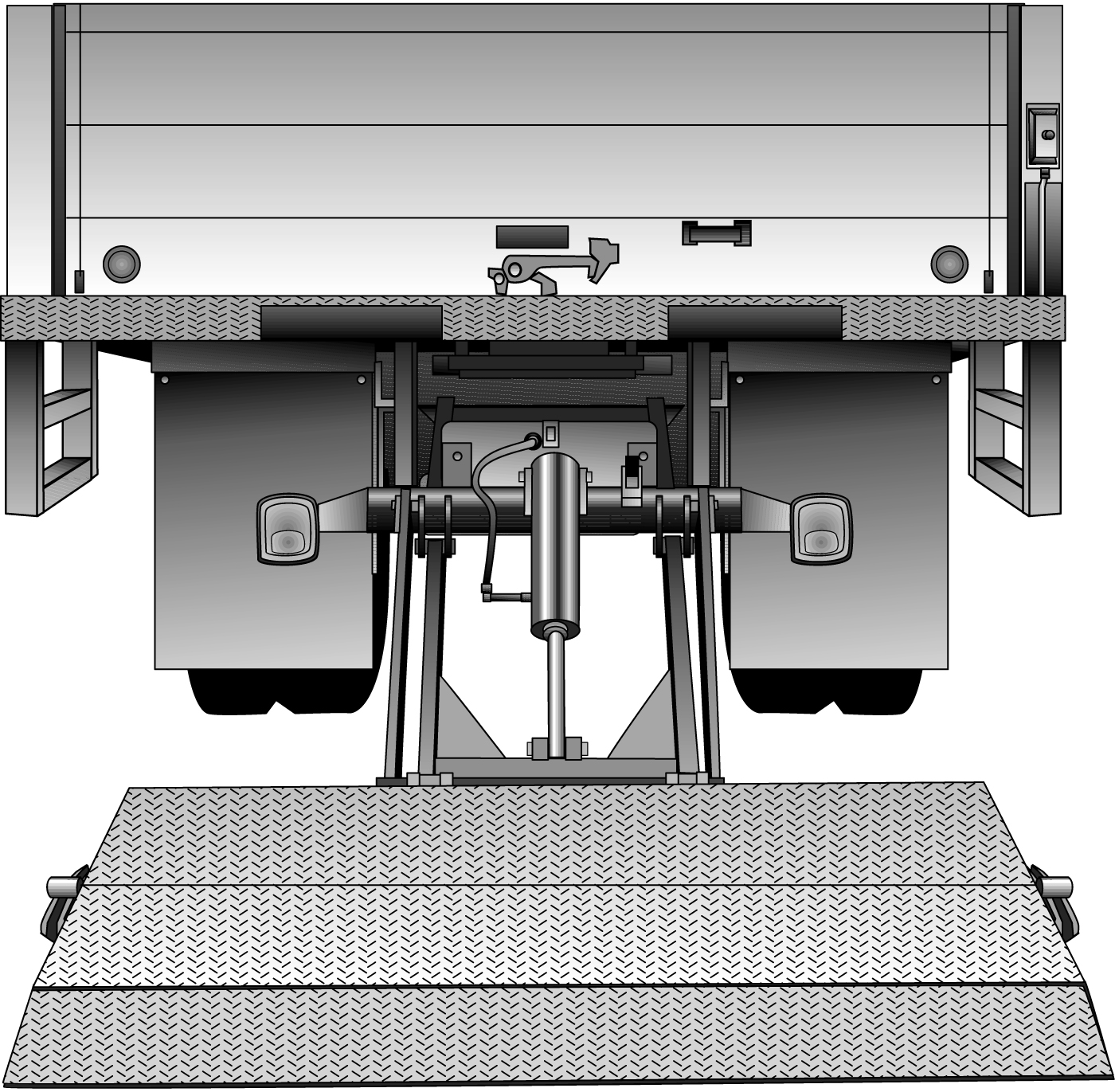

    • LHS / LLBS 2,500 Lb Capacity
      LHS:

      Rear Tuckunder Lift Gate
      Floor Height: 35" Laden to 56" Unladen

      Standard Features
      Greaseless bushings • Bolt on power pack enclosure houses pump and motor • Low P.S.I. due to larger cylinder surface Pressure compensated flow control • Power line 35’ “2” gauge • Potted marine toggle switch • Manual transit lock Spring assist opening and closing • Leyman Extreme Shield

      LHS

    Side Gates

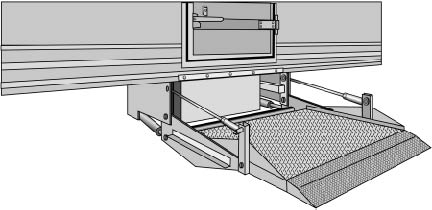

    • TLS Side Lift 3,500 Lb to 4,500 Lb Capacities
      TLS

      Trailer Side Door Lift Gate
      Floor Height: 48" Laden to 58" Unladen

      Standard Features
      Gravity down • Maintenance Minder2® • Rollers and lifting cylinders at pivot have grease fittings • Automatic over the road lock Potted marine toggle switch operation • Power in and out with stainless steel chain • Adjustable guides (in and out function) Power pack holds pump, motor, and room for four (4) batteries on 60”/72” W platform & two (2) batteries on 48“ W platform

      TLS
    • LPS Side Lift 4,500 Lb Capacity
      LPS

      Trailer Side Door Level Ride Platform
      Floor Height: 48" Laden to 58" Unladen

      Standard Features
      Gravity down • Maintenance Minder2® • Power in and out with stainless steel chain • Leyman Extreme Shield • Adjustable out/up stops Power pack enclosure holds pump, motor, and room for four (4) batteries • Greaseless bushings • Potted marine toggle switch operation Automatic over the road lock • Adjustable guides (in/out - side/side functions) • Two (2) hydraulic cylinders lift galvanized platform

      TLS
    • TSG Side Lift 1,850 Lb to 2,500 Lb Capacities
      TSG

      Trailer Side Door Lift Gate
      Floor Height: 44" Laden to 56" Unladen

      Standard Features
      Power pack enclosure holds pump and motor • Potted marine toggle switch operation • Leyman Extreme Shield Greaseless bushings • Spring assisted opening and closing • Manual transit lock • Power line 27’ “2” gauge

      TLS
